PID Controller Introduction

© 2018 Anton Lebedevich

Anton Lebedevich

• data science engineer
• loves time series and anomalies
• switched to NLP and marketing campaign optimization
• blogs at mabrek.github.io

Motivation

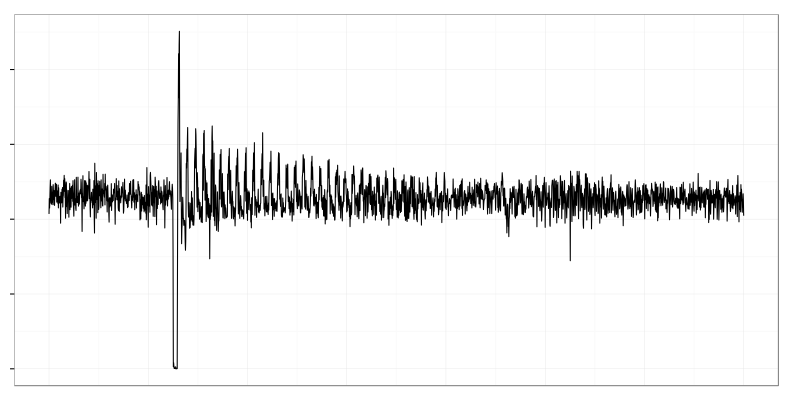

It Could Happen to You

wikipedia.org/wiki/Self-oscillation

• load balancers
• autoscaling
• flow control (e.g. Spark Streaming)
• load testing
• …

Mash Tun

Ibrew-50-Auto

Mash Tun Specs

• 50l
• 3000W
• 100W step regulation
• digital thermometer

Simplified Physical Model

temperature_derivative = (
    power
    - heat_transfer_coefficient * surface
      * (temperature - external_temperature)
) / heat_capacity


wikipedia.org/wiki/Newton's_law_of_cooling

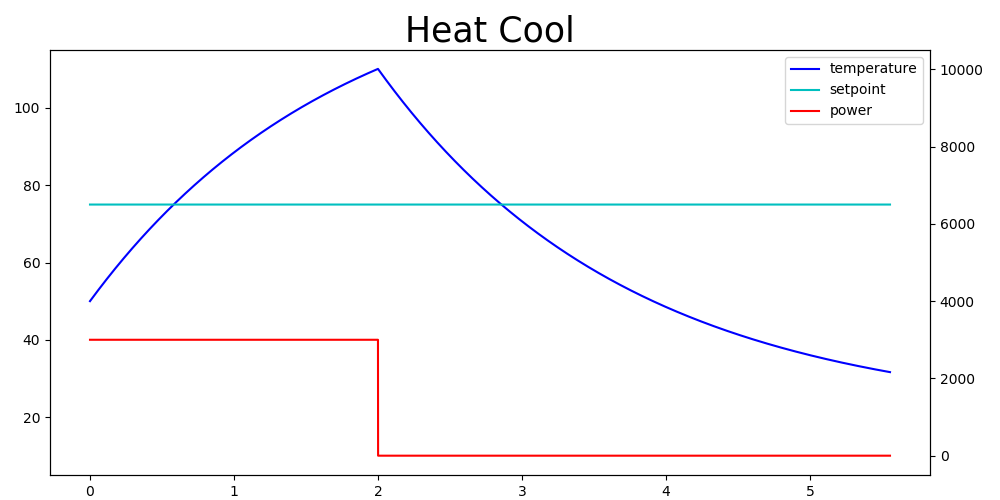

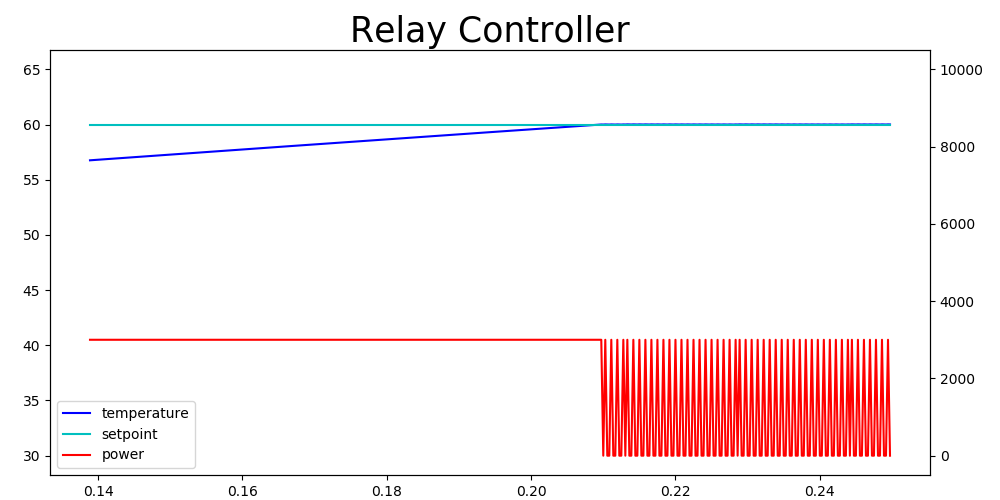

Relay Controller

if temperature[i] < setpoint[i]:
    next_power = max_power
else:
    next_power = 0

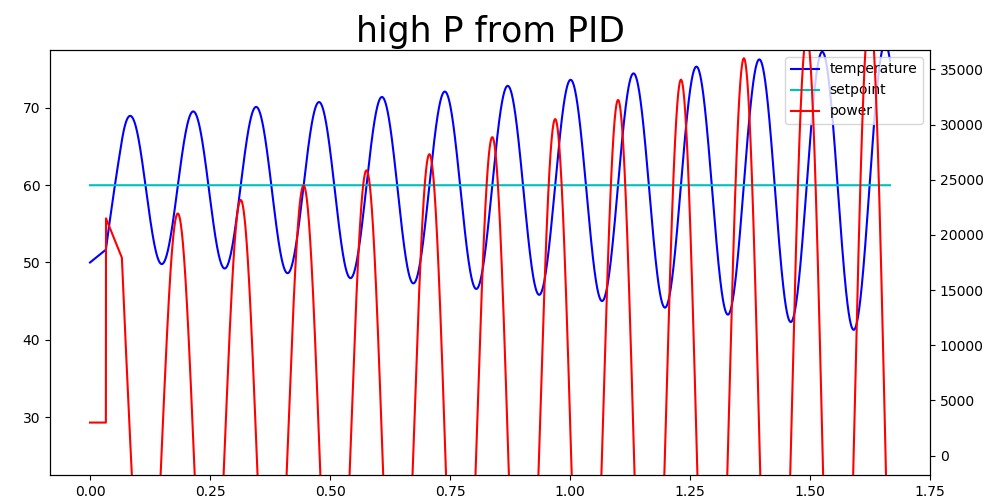

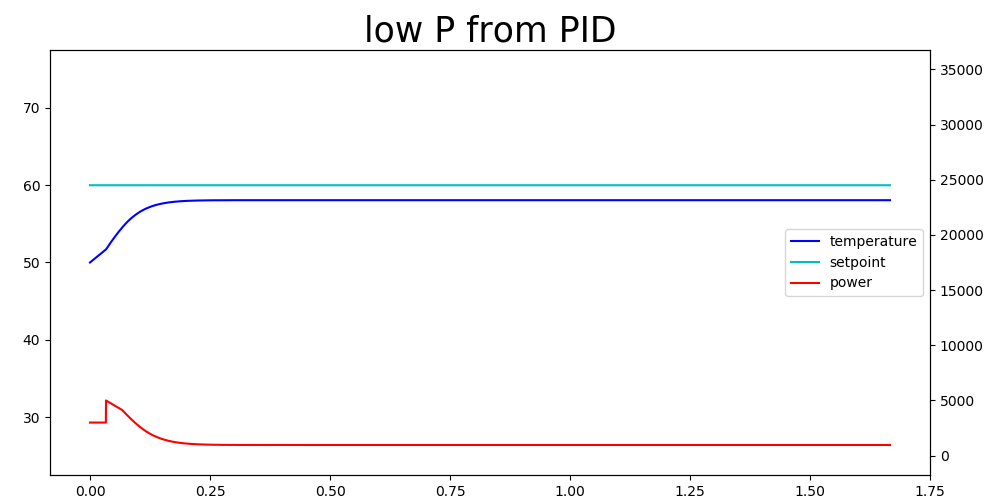

Meet P from PID

error[i] = temperature[i] - setpoint[i]
next_power = - proportional * error[i]

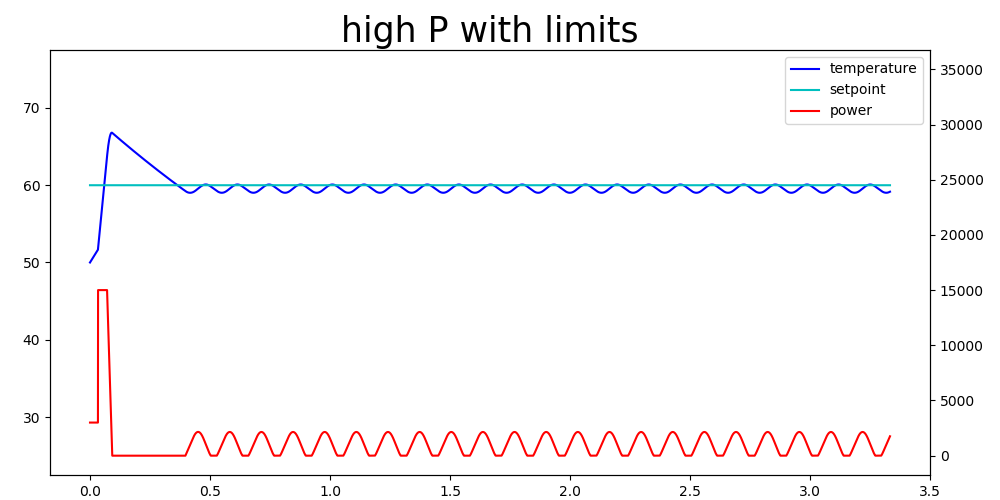

Clip Power Range

error[i] = temperature[i] - setpoint[i]
next_power = - proportional * error[i]
if next_power > max_power:
    next_power = max_power
elif next_power < 0:
    next_power = 0

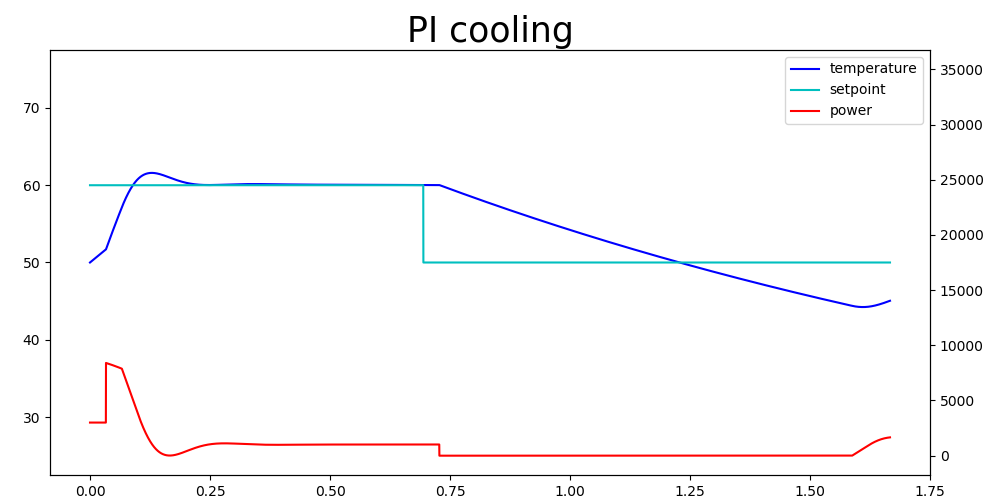

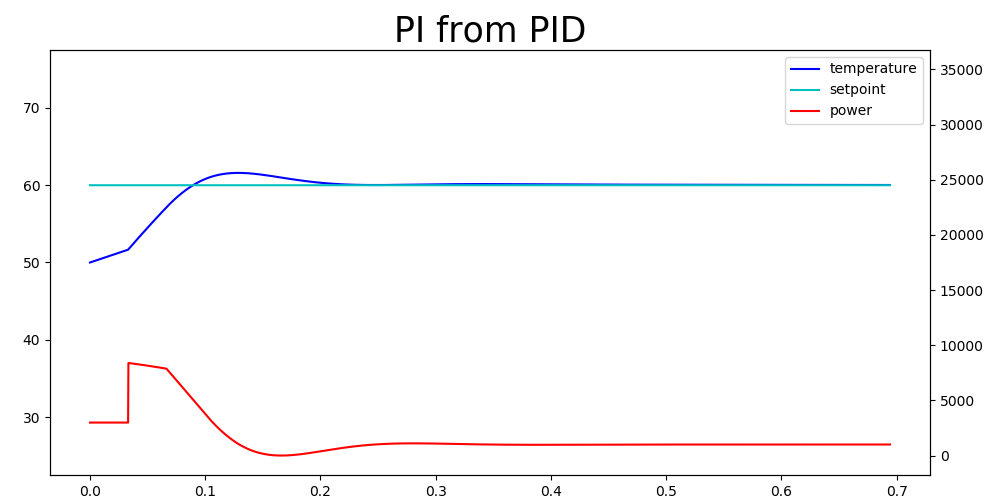

Add Integral Part (I from PID)

error[i] = temperature[i] - setpoint[i]
time_diff = time[i + 1] - time[i]
integral_error[i] = integral_error[i-1] + error[i] * time_diff
next_power = - proportional * error[i]
             - integral * integral_error[i]
if next_power > max_power:
    next_power = max_power
elif next_power < 0:
    next_power = 0

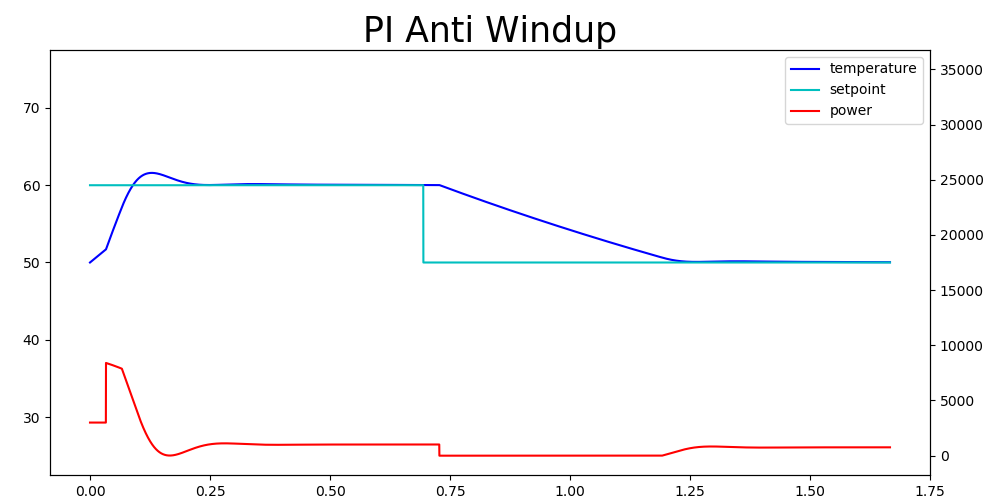

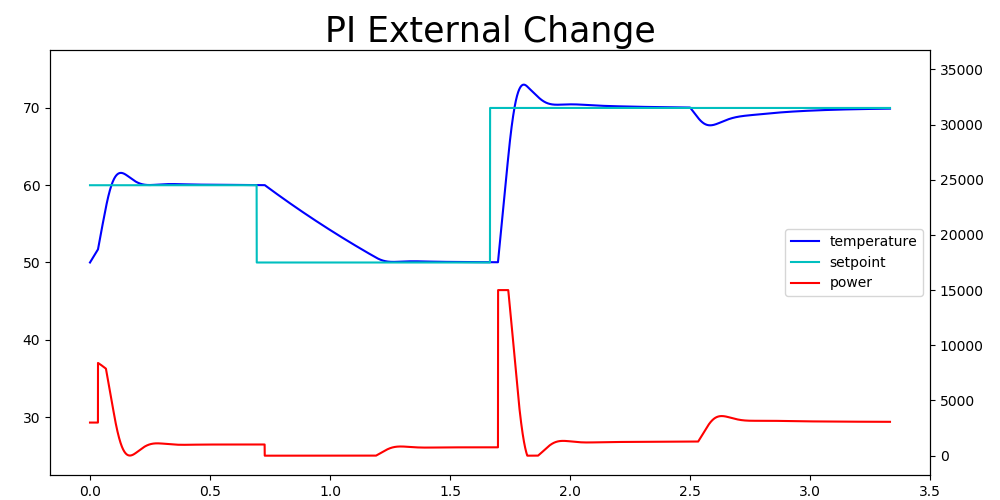

Integral Windup Protection

error[i] = temperature[i] - setpoint[i]
time_diff = time[i + 1] - time[i]
integral_error[i] = integral_error[i-1] + error[i] * time_diff
next_power = - proportional * error[i]
             - integral * integral_error[i]
if next_power > max_power:
    next_power = max_power
    integral_error[i] = integral_error[i-1]
elif next_power < 0:
    next_power = 0
    integral_error[i] = integral_error[i-1]

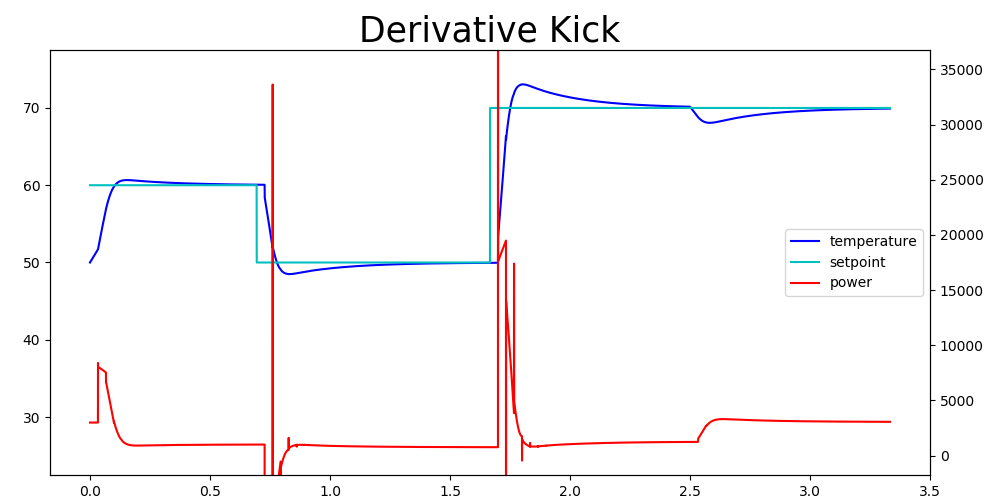

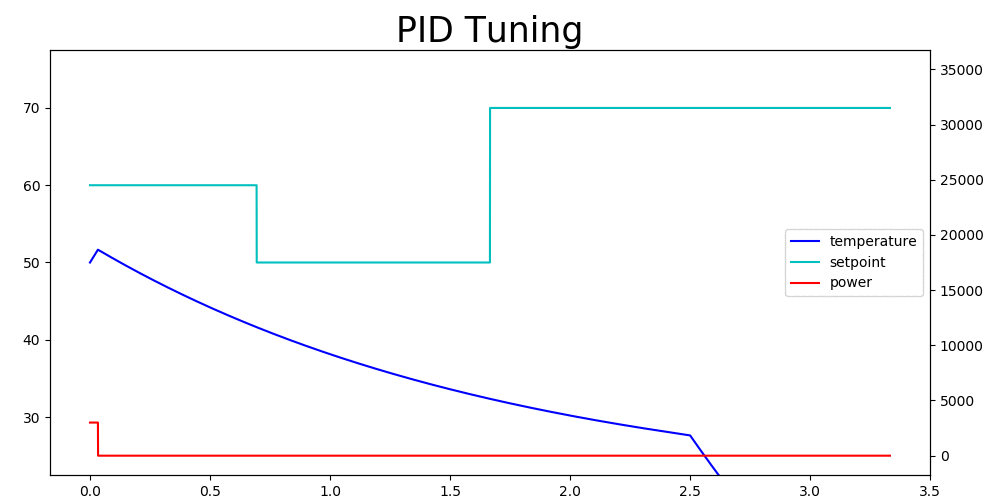

Derivative (D from PID)

error[i] = temperature[i] - setpoint[i]
time_diff = time[i + 1] - time[i]
integral_error[i] = integral_error[i-1] + error[i] * time_diff
derivative_error[i] = (error[i] - error[i - 1]) / time_diff
next_power = - proportional * error[i] \
             - integral * integral_error[i] \
             - derivative * derivative_error[i]

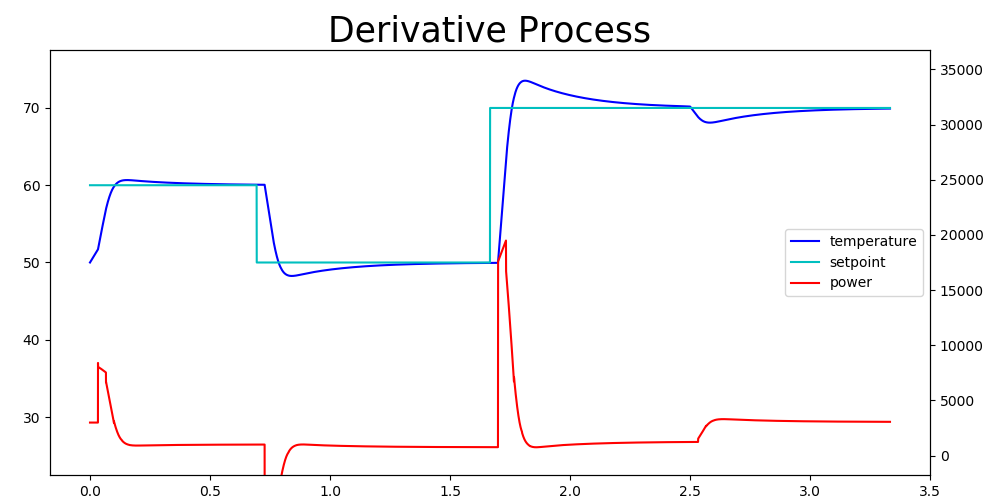

Process Variable Derivative

error[i] = temperature[i] - setpoint[i]
time_diff = time[i + 1] - time[i]
integral_error[i] = integral_error[i-1] + error[i] * time_diff
derivative_error[i] = (
    temperature[i] - temperature[i - 1]
) / time_diff
next_power = - proportional * error[i] \
             - integral * integral_error[i] \
             - derivative * derivative_error[i]

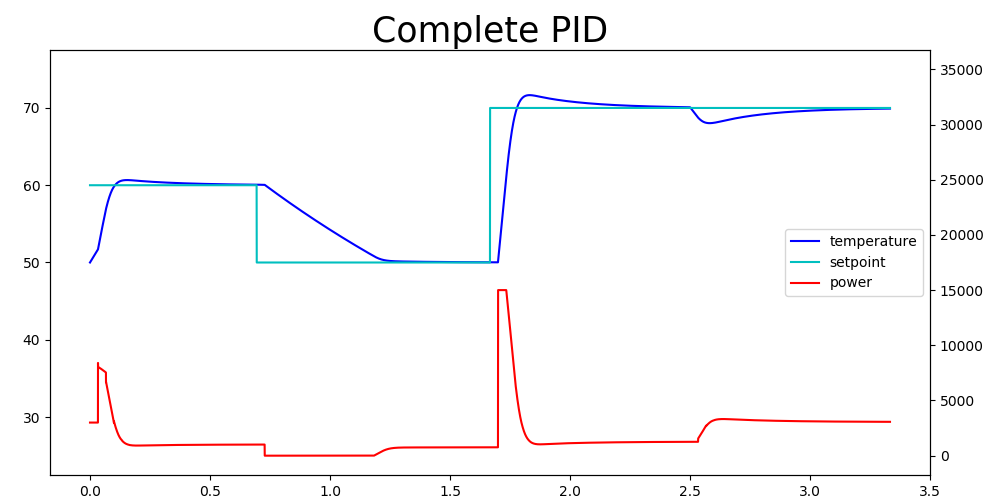

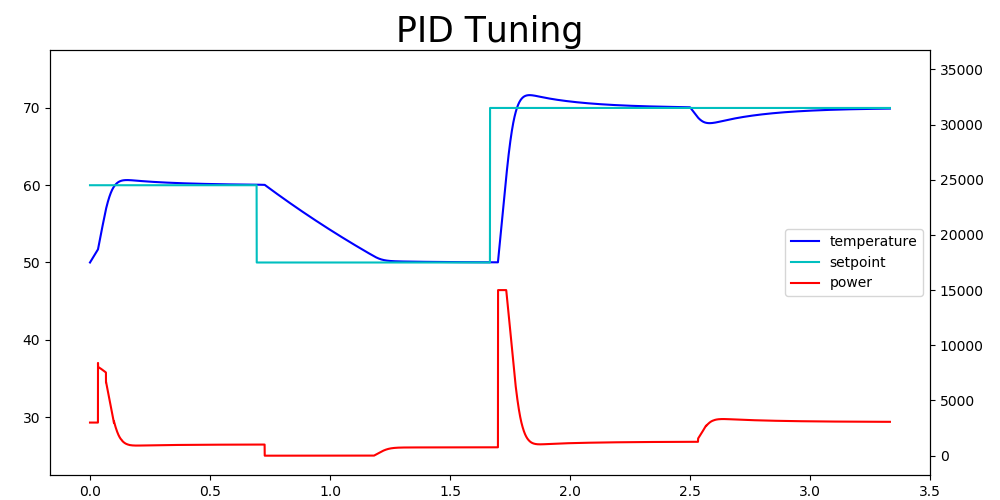

Complete PID

error[i] = temperature[i] - setpoint[i]
time_diff = time[i + 1] - time[i]
integral_error[i] = integral_error[i-1] + error[i] * time_diff
derivative_error[i] = (
    temperature[i] - temperature[i - 1]
) / time_diff
next_power = - proportional * error[i] \
             - integral * integral_error[i] \
             - derivative * derivative_error[i]
if next_power > max_power:
    next_power = max_power
    integral_error[i] = integral_error[i-1]
elif next_power < 0:
    next_power = 0
    integral_error[i] = integral_error[i-1]


wikipedia.org/wiki/PID_controller

Books to read

• intro:
  • "Modeling and Simulation in Python" Allen B. Downey
  • "Feedback Control for Computer Systems" Philipp K. Janert
• medium:
  • "The Control Handbook: Control System Fundamentals, Second Edition" William S. Levine
  • "Feedback Systems: An Introduction for Scientists and Engineers" Karl J. Åström and Richard M. Murray
• advanced:
  • "Asynchronous Control for Networked Systems" María Guinaldo Losada et. al.
